VineVolt M4 Tethered Power Supply System
VineVolt M4 Tethered Power Supply System for Portable UAV Continuous Operation

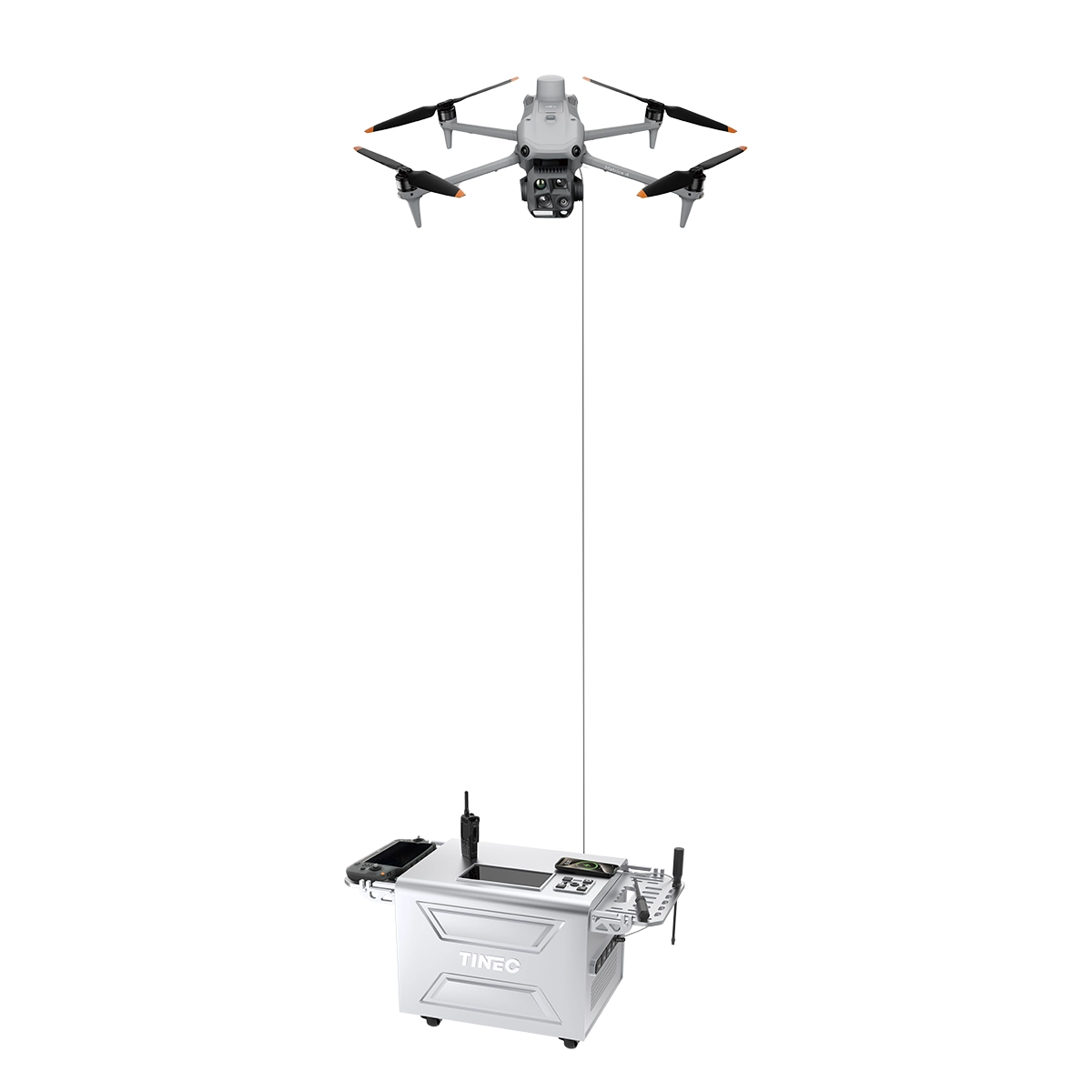

The VineVolt M4 tethered power supply system is a compact and portable UAV energy solution designed for continuous aerial operation and mobile deployment scenarios. This system provides stable and uninterrupted power to drones, allowing extended flight time without relying on onboard batteries.
Key Features of Tethered Power Supply System
√ Portable backpack design for single-operator use
√ Continuous power supply for extended UAV flight time
√ Automatic cable retraction system (55m tether)
√ Stable power output for reliable aerial performance
√ Lightweight airborne module (200g)
√ Ground output power up to 1KW
√ Integrated red-blue warning lights for visibility
√ Durable and weather-resistant structure
√ Easy deployment and quick setup
√ Suitable for mobile and emergency applications
Product Details

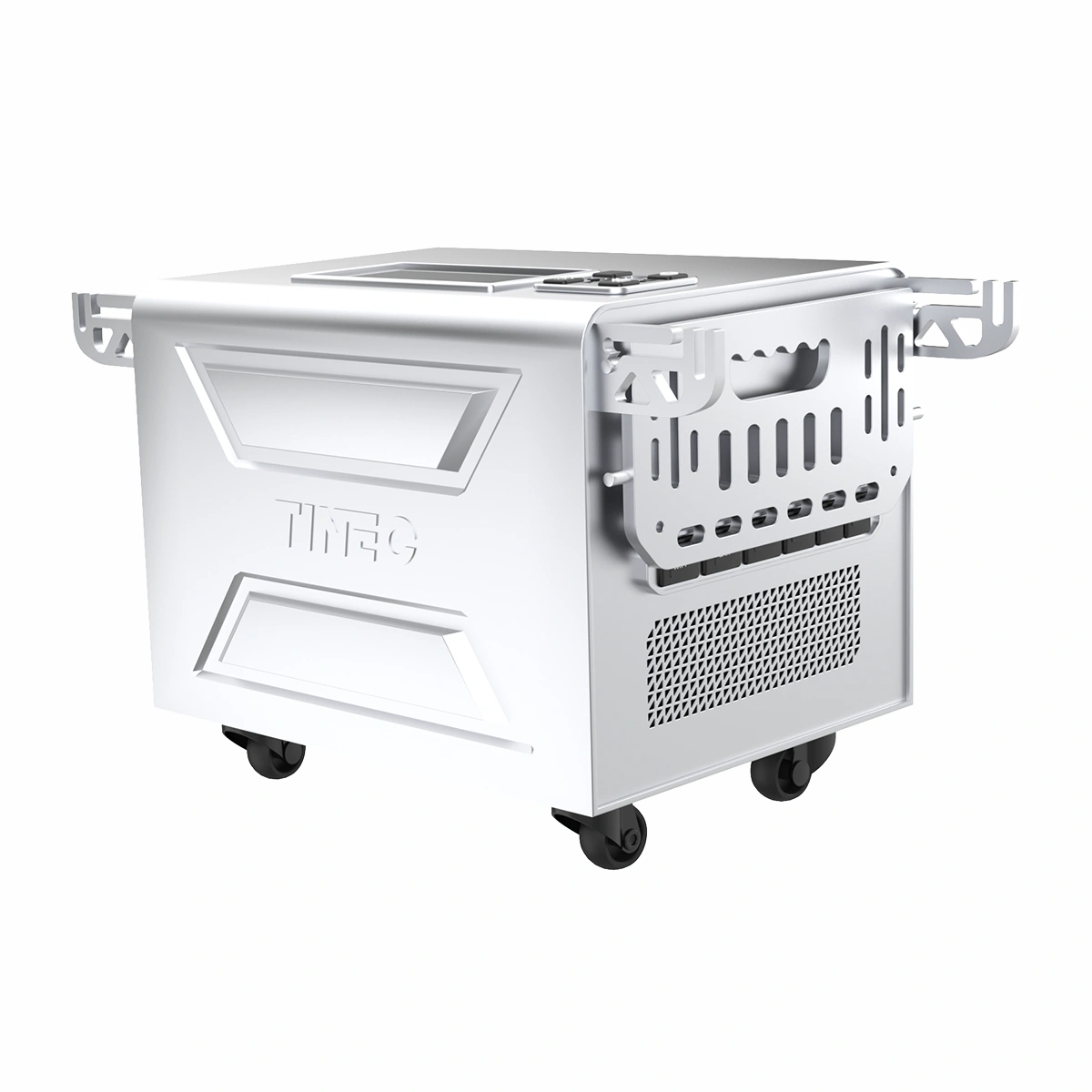

Designed with portability in mind, the VineVolt M4 features a backpack-style structure that enables single-operator deployment. It is ideal for missions that require both mobility and long-duration aerial presence, such as emergency response, temporary surveillance, and rapid field deployment.
Portable UAV Power Solution for Field Operations
The VineVolt M4 tethered power supply system is specifically designed for mobile field use. Its backpack configuration allows operators to carry the system easily across different terrains, making it highly suitable for outdoor missions.
This system enables drones to maintain continuous operation while operators remain mobile, offering flexibility that traditional tethered systems may not provide.
Typical use cases include:
- Temporary surveillance missions
- Emergency deployment in remote areas
- Mobile inspection tasks
- Rapid-response security operations
Continuous Power with Efficient Cable Management
The VineVolt M4 is equipped with an intelligent cable management system that automatically retracts and releases the tether cable. With a maximum length of 55 meters, the system provides sufficient operational height while maintaining stability.
This feature helps reduce cable wear, prevents tangling, and improves operational safety. By ensuring smooth cable handling, the system enhances reliability during long-duration missions and minimizes maintenance requirements.
Lightweight and Durable Design
The system combines lightweight materials with a robust structural design to ensure durability in various environments. Its ergonomic backpack form reduces operator fatigue and improves usability during extended operations.
Additionally, the weather-resistant housing protects the system from dust, moisture, and environmental impact, making it reliable for outdoor use.
Technical Specifications
| Item | Specification |
|---|---|
| Airborne Module Size | 100mm × 80mm × 40mm |
| Weight | 200g |
| Airborne Output Power | 1000W |
| Ground Unit Size | 480mm × 380mm × 200mm |
| Full Load Weight | 15kg |
| Ground Output Power | 1KW |
| Cable Length | 55m |
| Operating Temperature | -20°C to +50°C |
| Lighting | Red & Blue Warning |
Applications of Tethered Power Supply System
The VineVolt M4 tethered power supply system is widely used in mobile UAV operations where continuous power and flexibility are required.
→Learn more about UAV applications:
https://www.faa.gov/uas
→Learn more about energy systems:
https://www.energy.gov
AQ – Tethered Power Supply System
Q1: What is the main advantage of VineVolt M4?
A: It provides continuous UAV power in a portable, backpack-style system.
Q2: How long can the drone operate?
A: As long as external power is available, continuous operation is possible.
Q3: Is it suitable for mobile operations?
A: Yes, it is specifically designed for mobile deployment scenarios.
Q4: Does it include cable management?
A: Yes, it features automatic cable retraction.
Q5: Is it durable for outdoor use?
A: Yes, it has a weather-resistant design.
Conclusion
The VineVolt M4 tethered power supply system is a flexible and portable solution for continuous UAV operation. With its ergonomic design, stable power delivery, and intelligent cable management, it enhances efficiency in mobile aerial missions.
