VineVolt M30 Tethered Power Supply System
VineVolt M30 Tethered Power Supply System for UAV Continuous Operation and Aerial Lighting

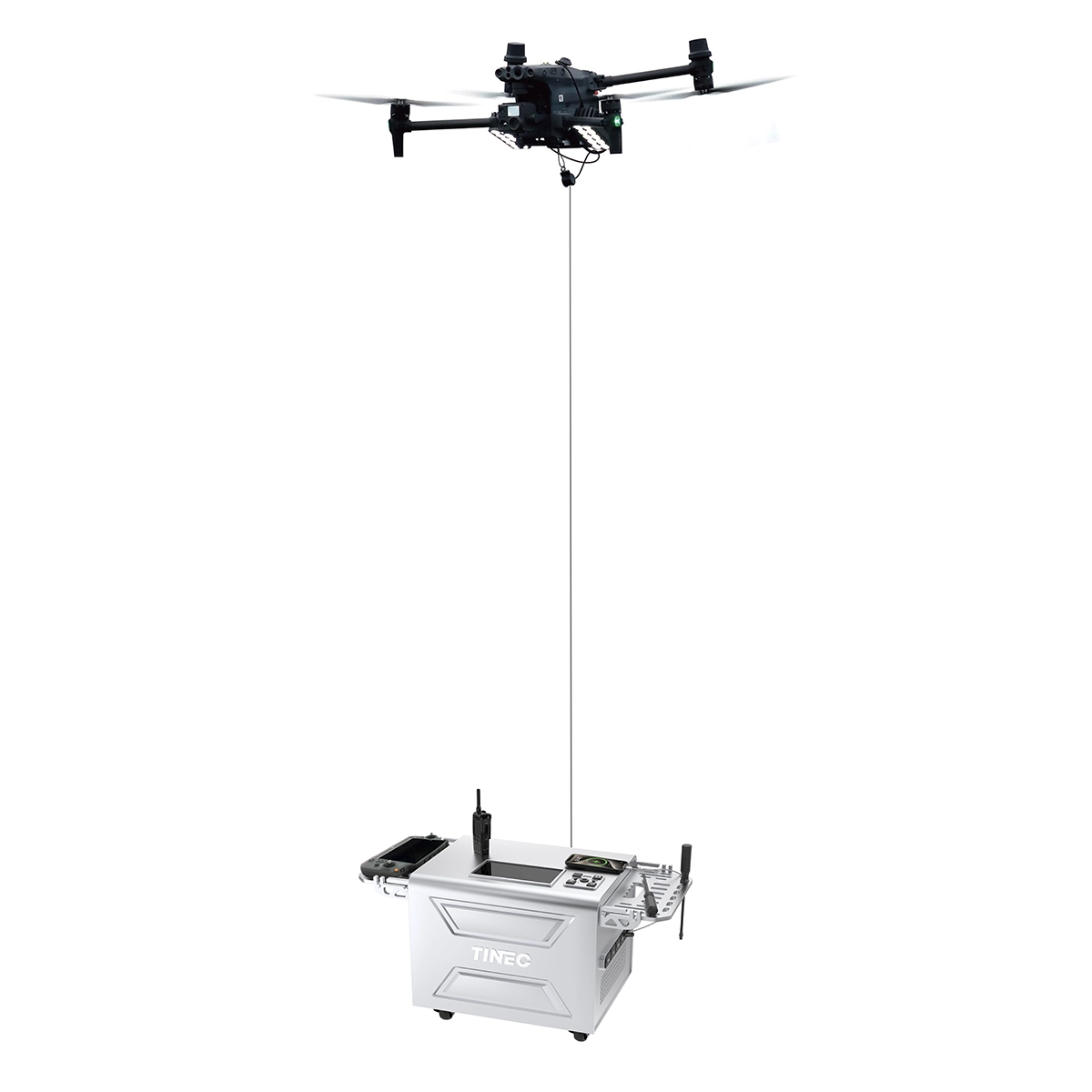

The VineVolt M30 tethered power supply system is an advanced UAV energy solution designed for continuous aerial operation and integrated lighting applications. This system combines stable ground-based power delivery with high-performance lighting, enabling drones to perform long-duration missions without battery limitations.
Key Features of Tethered Power Supply System
√ Continuous UAV power supply for long-duration missions
√ Integrated high-brightness lighting system (up to 50000 lumens)
√ Stable ground output power up to 1KW
√ Lightweight airborne module (200g)
√ Dual-side expansion platform and portable structure
√ Built-in charging system for operational efficiency
√ Red-blue warning lights for safety and visibility
√ 60m tether cable for flexible deployment
√ Durable and weather-resistant design
√ Easy installation without modification to the UAV
Product Details

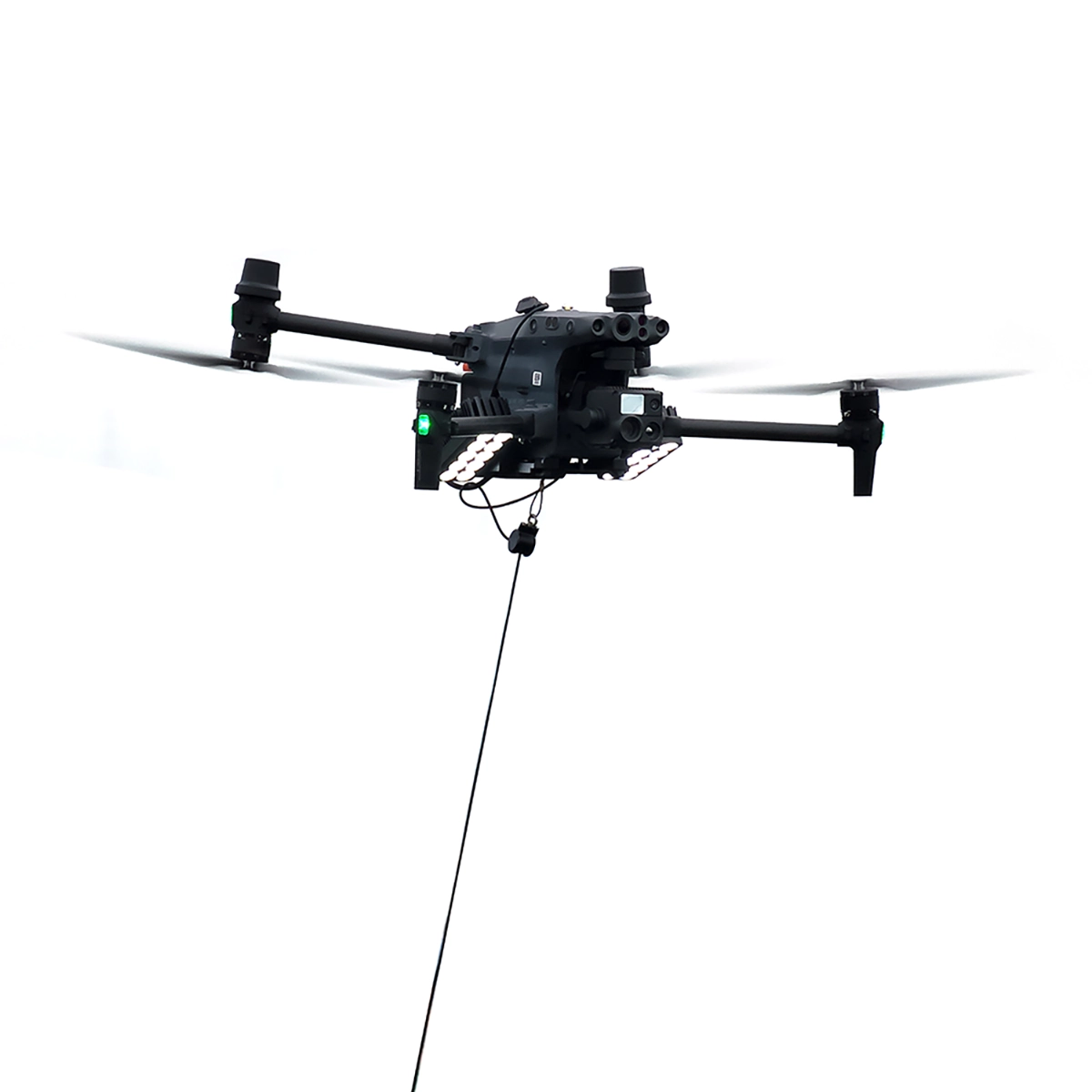

By supplying uninterrupted power through a tether cable, the VineVolt M30 allows drones to maintain stable flight while supporting onboard lighting systems. It is ideal for missions that require both continuous operation and high-visibility illumination, such as night surveillance, emergency response, and industrial inspection.
Continuous Power with Integrated Lighting Capability
The VineVolt M30 tethered power supply system is designed to support both continuous UAV operation and aerial lighting functions. By combining power delivery with lighting modules, the system enhances visibility during nighttime missions.
The integrated lighting system provides high brightness and wide coverage, making it suitable for operations that require strong illumination, such as search and rescue or night inspections. This dual-function design reduces the need for additional payloads, improving efficiency and simplifying deployment.
Designed for Night Operations and Emergency Scenarios
The VineVolt M30 is particularly effective in scenarios where both power and lighting are essential. Its ability to deliver continuous power ensures that the UAV can remain airborne for extended periods while maintaining stable illumination.
Typical applications include:
- Night surveillance and monitoring
- Emergency rescue operations
- Infrastructure inspection at night
- Public safety and security missions
Intelligent System Integration and Easy Deployment
The VineVolt M30 system features a modular design that supports quick installation and easy integration with UAV platforms. The bottom quick installation structure allows operators to mount the system without modifying the aircraft.
In addition, the built-in charging system improves operational efficiency by enabling faster deployment and reducing preparation time.
Stable Performance and Durable Design
The system is designed to operate reliably in demanding environments. Its durable outer structure protects internal components from environmental factors such as dust and moisture.
The tether cable is engineered for long-term use, minimizing wear and maintaining stable power transmission. This ensures consistent performance during extended missions.
Technical Specifications
| Item | Specification |
|---|---|
| Airborne Module Size | 100mm × 80mm × 40mm |
| Weight | 200g |
| Airborne Output Power | 1000W |
| Box Size | 480mm × 380mm × 200mm |
| Full Load Weight | 10kg |
| Ground Output Power | 1KW |
| Cable Length | 60m |
| Operating Temperature | -20°C to +50°C |
Lighting Module Specifications
| Item | Specification |
|---|---|
| Size | 270mm × 155mm × 63mm |
| Weight | 650g |
| Power | 450W |
| Brightness | 50000lm |
| Color Temperature | 6500K |
| Beam Angle | 60° |
| Rotation Angle | Pitch -45° to +45° |
Applications of Tethered Power Supply System
The VineVolt M30 tethered power supply system is widely used in UAV operations requiring continuous power and lighting. It improves efficiency and reduces operational interruptions in long-duration missions.
→Learn more about UAV operations:
https://www.faa.gov/uas
→Learn more about energy systems:
https://www.energy.gov
FAQ – Tethered Power Supply System
Q1: What makes VineVolt M30 different from standard systems?
A: It combines continuous power supply with integrated lighting functionality.
Q2: Can it be used for night operations?
A: Yes, it is specifically designed for night missions with high-brightness lighting.
Q3: How long can the UAV operate?
A: Continuous operation is possible as long as ground power is supplied.
Q4: Is installation complicated?
A: No, it supports quick installation without modification.
Q5: Is it suitable for industrial use?
A: Yes, it is designed for industrial and emergency applications.
Conclusion
The VineVolt M30 tethered power supply system is a versatile solution for UAV continuous operation and aerial lighting. By integrating power delivery with illumination, it enhances efficiency and performance in night missions and industrial applications.
External Resources
Learn more about UAV operations and regulations:
https://www.faa.gov/uas
Explore energy systems and power technologies:
https://www.energy.gov
Get Tethered Power Supply System
Looking for a UAV system with continuous power and lighting capability?
Contact us today for pricing and integration support→
