XF-40 UAV Fire Water Gun System
Professional Drone Firefighting Spray System for Emergency Response
The XF-40 UAV Fire Water Gun System is a high-performance aerial firefighting solution designed for industrial drones.
With a 40mm high-flow hose, adjustable spray angle, and quick-release structure, it enables efficient and precise fire suppression in complex environments.
With an effective spraying range of 10 to 15 meters, the XF-40 allows drones to operate at a safe distance from fire sources, reducing risk while maintaining high firefighting efficiency. The system supports both water and fire foam as extinguishing agents, making it adaptable to a wide range of firefighting applications.
Key Features of XF-40 UAV Fire Water Gun System
✔High-Flow Fire Suppression
✔ Lightweight & Durable Design
✔ Adjustable Spray Angle
✔ Quick-Release Installation
✔ Extended Spraying Range
Product Details
Product Description
The XF-40 UAV Fire Water Gun System is an advanced aerial firefighting solution designed for industrial drone platforms. It is specifically engineered to deliver high-efficiency fire suppression in environments where traditional firefighting methods are difficult, dangerous, or inefficient.
Equipped with a 40mm large-diameter fire hose, the system ensures a strong and stable water or foam output, enabling rapid fire control from the air. The spray gun is designed with a precision nozzle that supports adjustable spray angles, allowing operators to adapt to different firefighting scenarios such as forest fires, industrial hazards, and high-rise emergencies.
The hose adopts a composite structure consisting of a polyethylene fiber outer layer and a TPU inner lining. This design provides excellent durability, flexibility, and resistance to high pressure, ensuring reliable performance even under harsh operating conditions. With a pressure resistance of up to 2.5 MPa and a blasting pressure of 3.2 MPa, the system maintains safety and stability during operation.
One of the key advantages of the XF-40 system is its lightweight construction. Weighing only 1.05 kg, it minimizes the payload burden on UAV platforms, allowing for longer flight times and improved maneuverability. The quick-release installation mechanism further enhances operational efficiency by enabling fast mounting and dismounting, which is critical in emergency response situations.

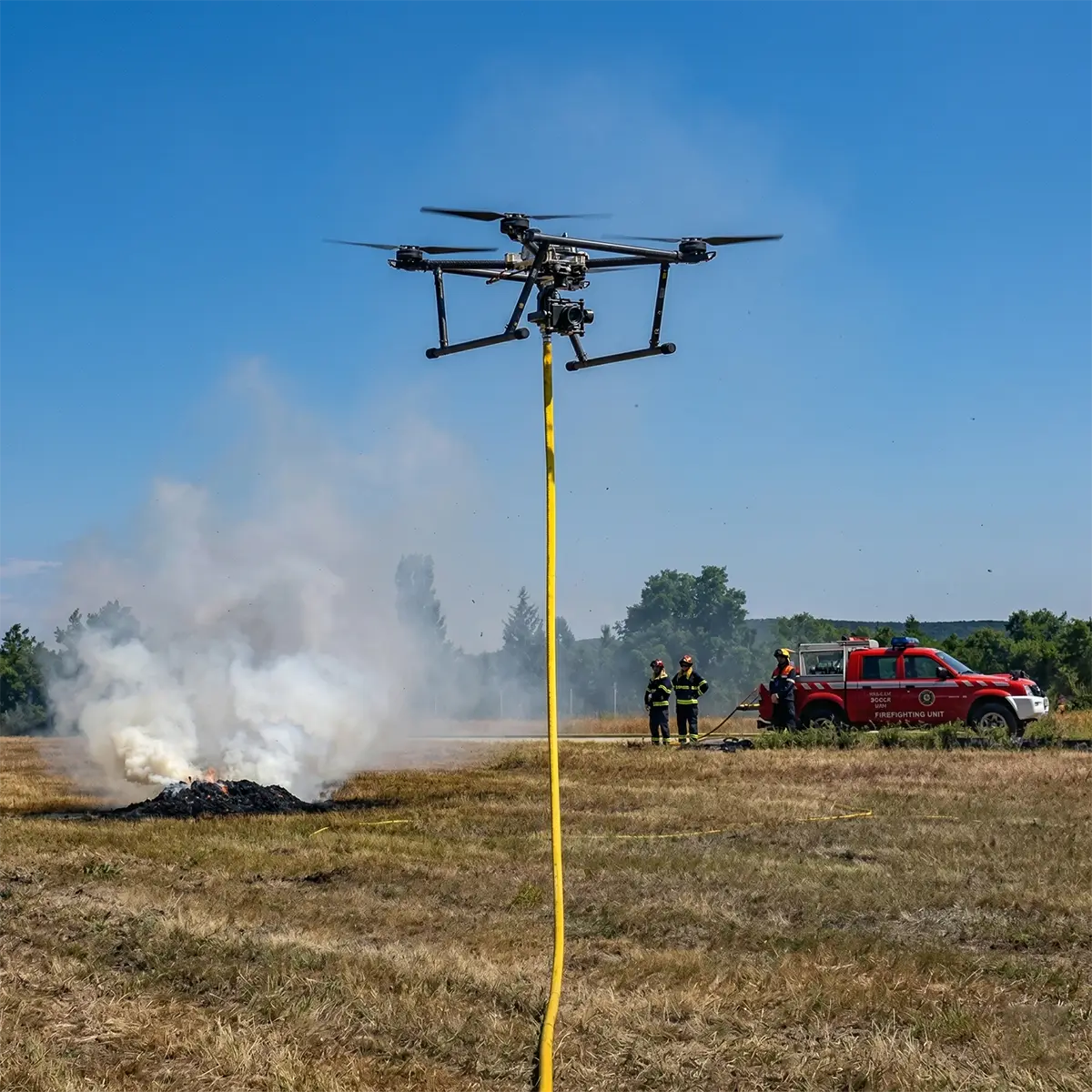

Applications of UAV Fire Water Gun System
- Forest fire suppression
- Industrial firefighting
- Emergency rescue operations
- High-rise firefighting
- Hazardous area fire control
Product Specifications
| Parameter | Details |
|---|---|
| Product Model | XF-40 |
| Size | 2485 × 52 × 138 mm |
| Weight | 1.05 kg |
| Spray Gun Length | 2500 mm |
| Nozzle Diameter | 20 mm |
| Water Hose Diameter | 40 mm |
| Hose Length | 90 m |
| Spray Angle | Adjustable |
| Installation Method | Quick Release |
| Extinguishing Agent | Water / Fire Foam |
| Effective Range | 10–15 m |
| Pressure Resistance | 2.5 MPa |
| Blasting Pressure | 3.2 MPa |
| Connection Method | Integral Forging Joint |
Why Choose UAV Firefighting Systems?
Traditional firefighting methods often face limitations in accessibility, safety, and response time. UAV-based firefighting systems like the XF-40 provide a modern solution by enabling rapid deployment, remote operation, and precise fire suppression.
Compared to manual firefighting, drone-mounted systems can reach hazardous or hard-to-access areas quickly, reducing risks to personnel while improving efficiency. The combination of mobility, flexibility, and high-flow output makes UAV firefighting systems an essential tool for modern emergency response teams.
Why UAV Firefighting Systems?
UAV firefighting systems are transforming emergency response by enabling rapid deployment, safe operation, and precise fire suppression. Compared to traditional firefighting methods, drone-based systems significantly reduce risks to personnel while improving efficiency in hard-to-access areas.
The XF-40 UAV fire water gun system is designed to meet these modern firefighting demands with high-flow performance, flexible control, and reliable operation.
Compatible UAV Platforms
The XF-40 system can be integrated with platforms such as the TL2P UAV Payload Drop System and the T4 UAV Thrower System for enhanced operational capability.
Get a Customized Solution
Looking for a professional UAV firefighting solution?
Contact us for customization, integration support, and bulk orders.
