TR1 Walkie – talkie Relay System

Product Highlights

Small size, big function

It can provide on-site assistance, expanding the network to blind spots such as high-rise underground buildings, tunnels, large complexes, petrochemical plants, and tunnels. It can be used for extended periods in various extreme situations, providing reliable emergency communications on-site.

Low power, large range

This product supports single Beidou positioning (domestic), and the self-organizing network autonomous handheld station can support up to 6 hops, and the maximum range can be extended to the radiometer range of 25 kilometers.

IP67

Waterproof level

NVOC/VOICE

Built-in vocoder

PRT/DMR DIGITAL

Supported mode

One person can easily carry the entire system and quickly deploy it in 10 seconds

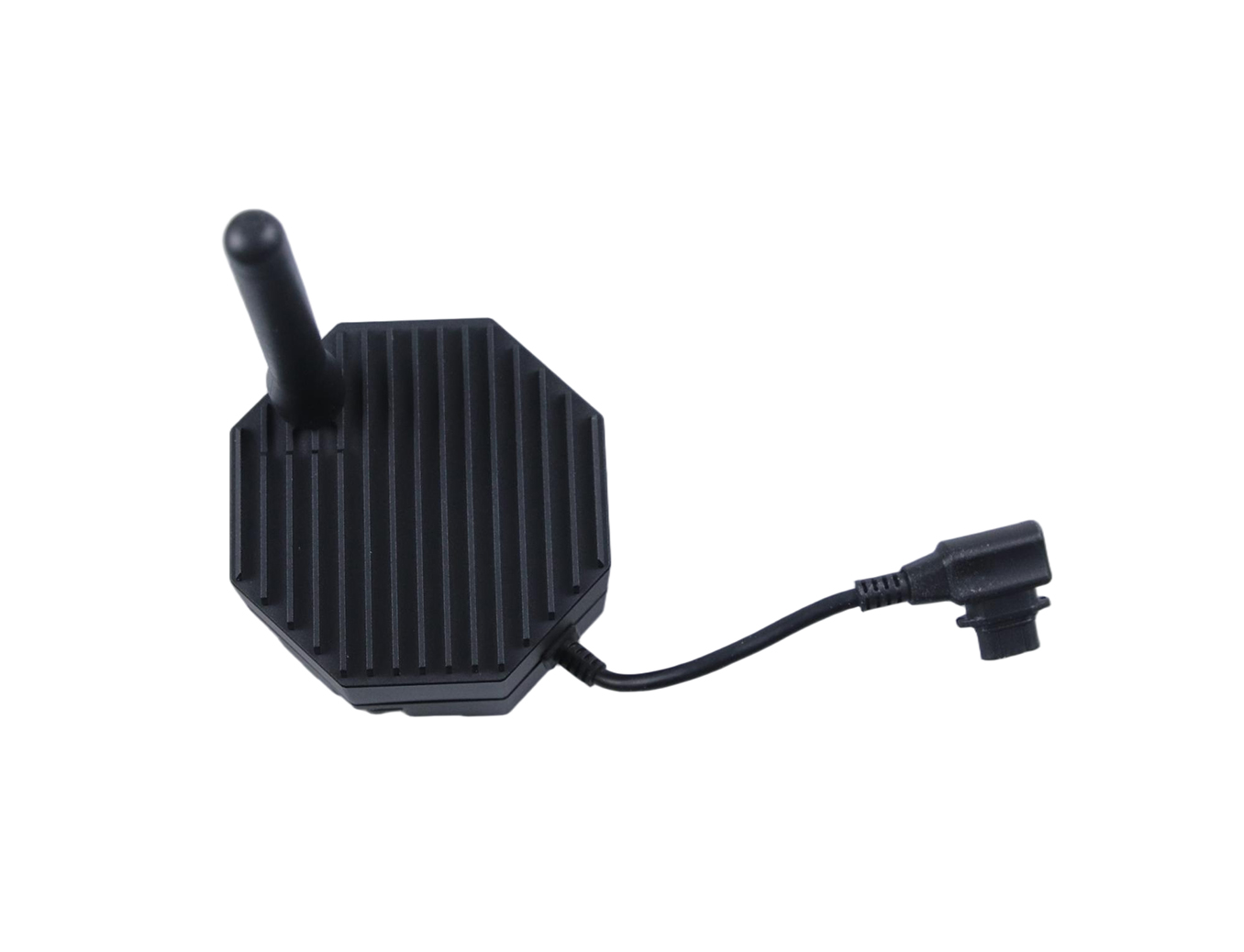

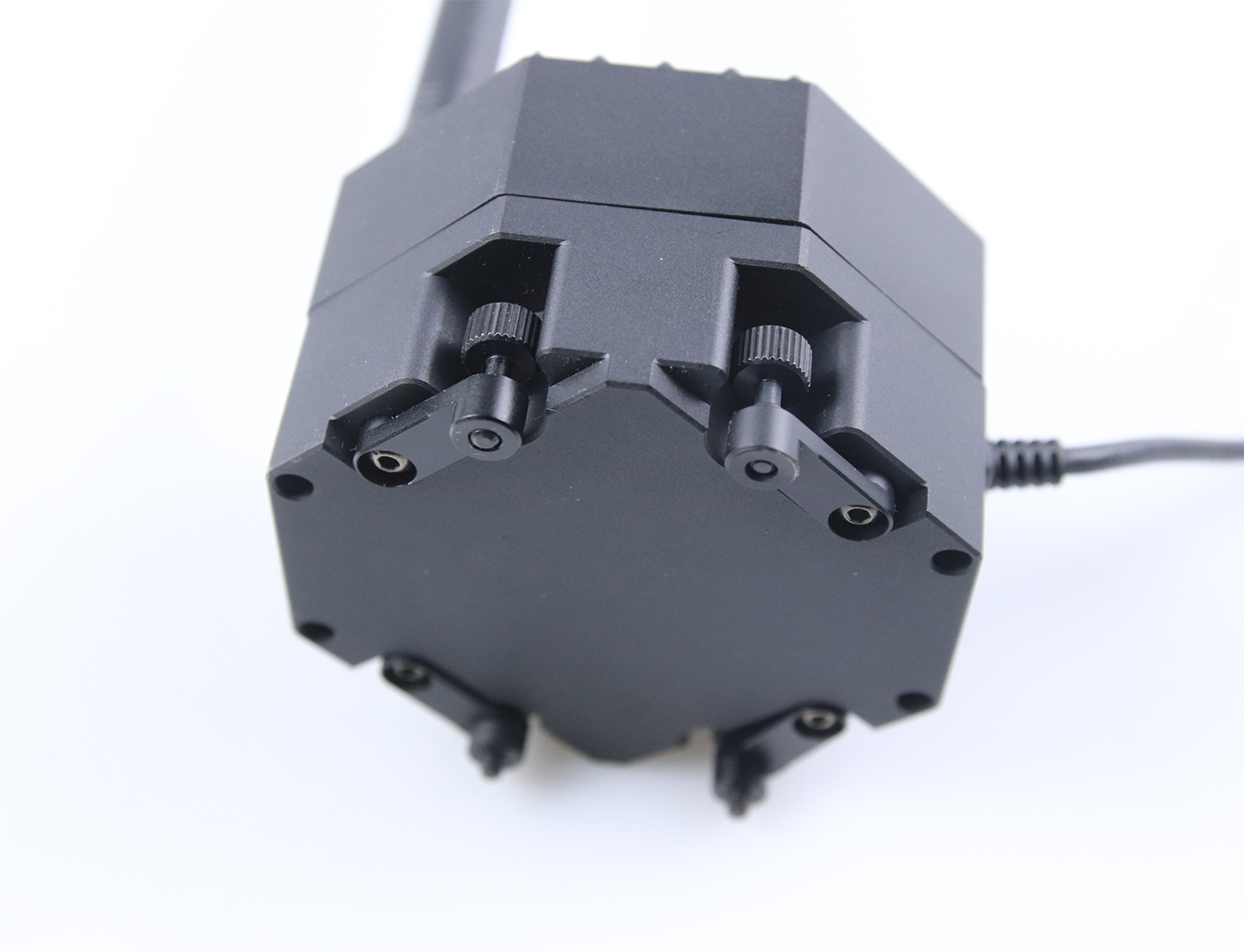

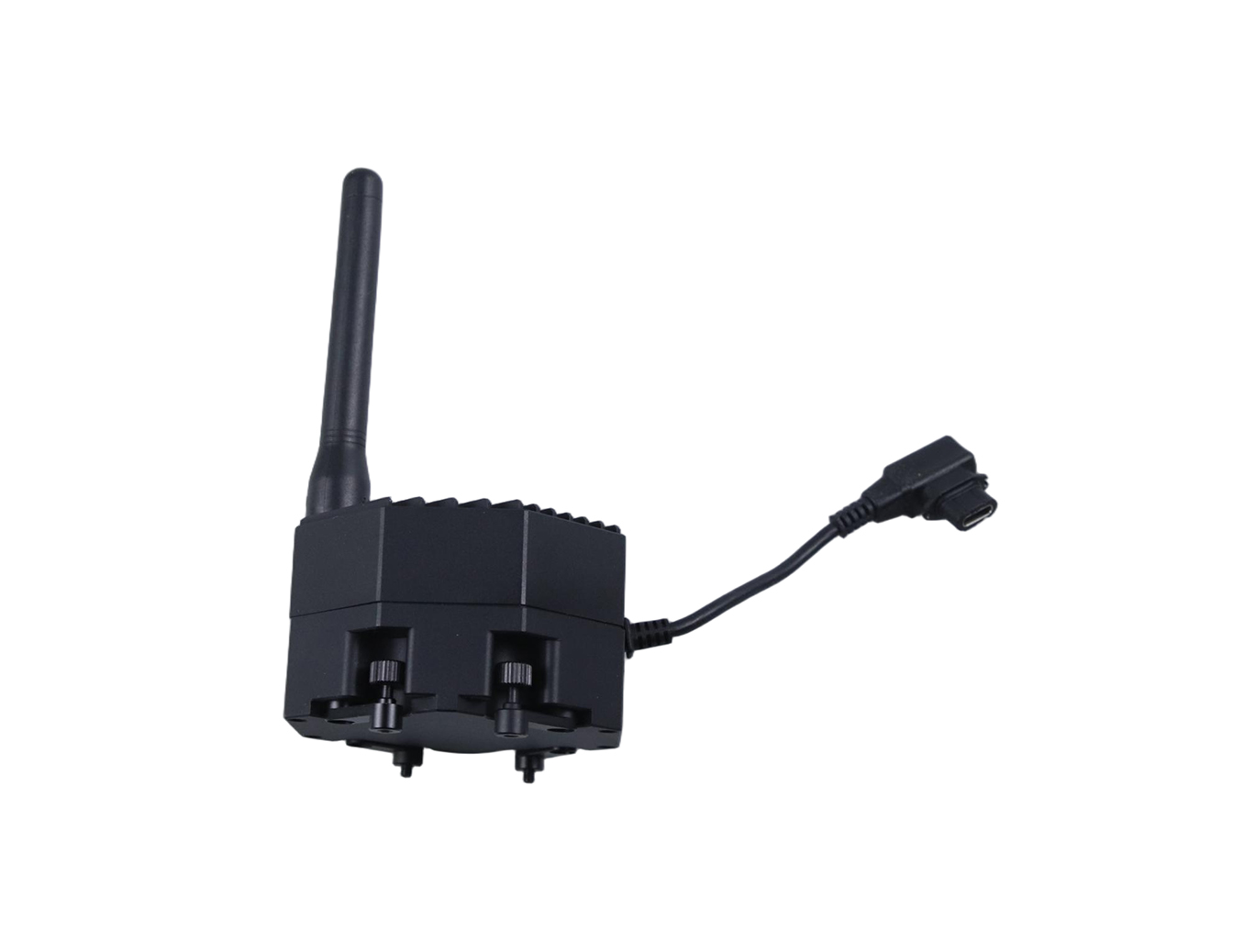

TR1 Walkie - talkie Relay System

This is a communication device that is very suitable for emergency rescue. ltcan work as soon as it is turned on, and the frequency and group number can be directly changed on the drone remote control. We can provide on-site assistance to expand the network to blind spots such as high-rise undergroundbuildings,tunnels,super large complex buildings, petrochemical enterprises.and tunnels. lt can be used for a long time in various extreme situations, providing reliable emergency communication support for the site. Waterproofand dustproof, can work reliably in harsh weather conditions. This product supports single Beidou positioning, self-organizing network autonomoushandheld radio can support up to 6 jumps, and the maximum range can be extended to a radiometer range of 25km. Narrowband voice relay, adapted to PDT/DMR digital conventional format and self-organizing network mode, standard portable antenna, can be carried around for rapid deployment and expansion of on-site networking specifications.

Channel range350-470MHZ
Channel capacity1024
Channel spacing number12.5KHz
Working modeTime slot transfer
Working voltage9-24VDC
Working temperature-30°C-+60°C
Storage temperature-40°C-+85°C
Dimensions and weight220g(without antenna)
75x75x53mm(without antenna)
Waterproof levelIP67
Built-in vocoderNVOC/Voice
Frequency writingn methodPSDK drone remote controller direct/appwriting frequency and group number
Positioning methodBeidou Position(domestic)
Supported modePDT digital conventional/DMR digital conventional/self-organizing network

VIDEO

VIDEO

TR1 Walkie - talkie Relay System Product Video

Product Teaching

TR1 Walkie - talkie Relay System Unboxing Video

TR1 Walkie - talkie Relay System User Guide

Product Downloads

Download Instructions

TR1 Walkie - talkie Relay System - Instructions
